C-4 Printer Memory and Expansion ENWW

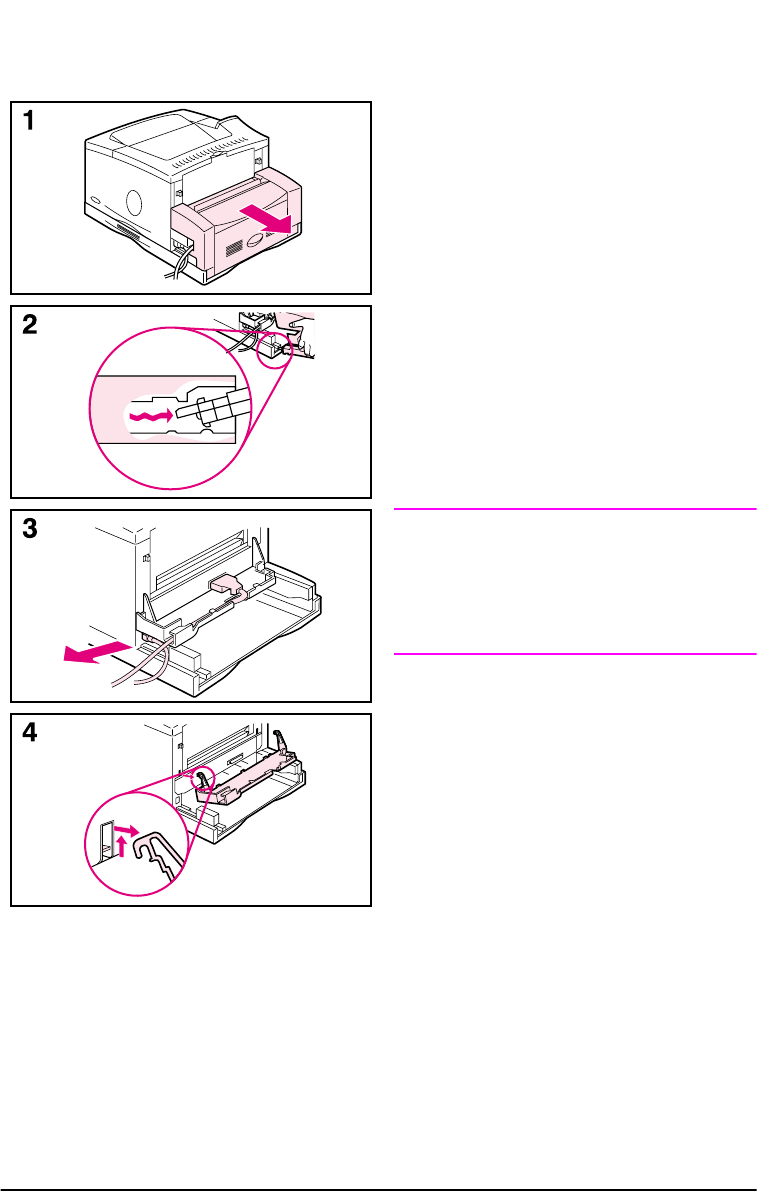

If an optional duplexer is installed:

1 Slide the rear section of the duplexer

away from the printer.

2 Remove the rear section of the

duplexer by lifting and rotating the

rear section to clear all of the tabs in

the grooves, as illustrated.

3 Unplug the power cord and

disconnect any cables.

4 Remove the cable tray by lifting it out

of position, as illustrated.

Go back to Step 2, on page C-2.

Note

Reverse these steps to install the cable

tray and the rear section of the duplexer.

Make sure the cable tray is properly

installed and the cables are routed

through the left side.
